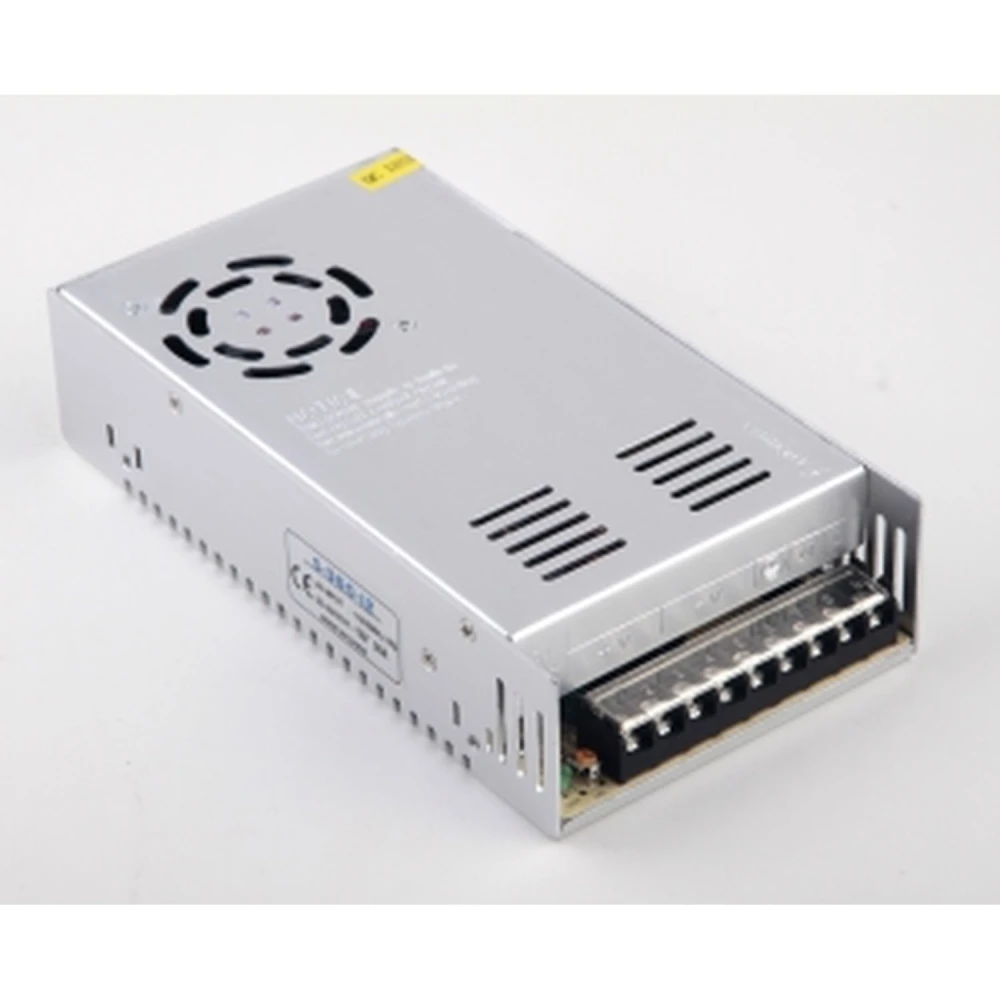

12V 30A 360W transformer - AC to DC power supply YourLed

The 12V 30A 360W transformer from the YourLed brand is an AC to DC power supply designed to provide stable and safe power to a wide variety of electronic devices that require a 12V supply with a maximum consumption of 360W.

Common applications:

• Electronic equipment that operates at 12V.
• LED strips for decorative or functional lighting.
• Wireless routers and ADSL devices.
• Power supply for security cameras and surveillance systems.
• Audio and video equipment.
• Security systems and other electronic devices.

This transformer is ideal for powering any equipment that requires a 12V voltage and a consumption below 360W. For LED strips, it is recommended that the power supply output be higher than the total consumption of the strips. For example, for 4 meters of LED strip with a consumption of 12W per meter, a power supply of at least 48W is needed.

Technical features:

• Model: S-360-12.
• Power supply: 100-120V AC or 200-220V AC.
• Output voltage: 12V DC adjustable between 10V and 13,2V via potentiometer.
• Maximum output current: 30A.
• Maximum output power: 360W (continuous use at maximum is not recommended).
• Number of outputs: 3.
• Operating temperature range: -20°C to 60°C.
• Output connector: Screw terminal (Type Screw Terminal Block).
• Housing material: Metal for better heat dissipation and greater durability.
• Protection against short circuits, overloads and overvoltage.
• Dimensions: 50mm (height) x 215mm (length) x 110mm (width).
• Weight: 880 grams.

Main advantages:

• Metal structure that improves heat dissipation and extends the transformer’s service life.
• Voltage regulation to adapt to different power needs.
• Built-in protections to ensure the safety of the connected equipment.

This transformer is compatible with a wide range of electronic devices that require stable 12V DC power and up to 30 amperes, making it a reliable solution for LED lighting projects, surveillance systems, audio and video, among others.

To choose the correct transformer for LED strips, calculate the total consumption by multiplying the meters of strip by the wattage per meter, ensuring that the transformer power is higher than this value to avoid overloads.

The YourLed power supply is a robust and efficient option for those who need a constant and safe power supply in various electronic applications.

• Adjustable output voltage from 10V to 13,2V with potentiometer.
• Maximum output current of 30A and maximum power of 360W.
• Metal housing for better heat dissipation and durability.
• Protection against short circuits, overloads and overvoltage.
• Three outputs with screw terminals for secure connection.
• Compatible with LED strips, cameras, routers and audio and video equipment.
• Operating temperature range from -20°C to 60°C.
• Compact dimensions: 50x215x110 mm and light weight of 880 grams.
